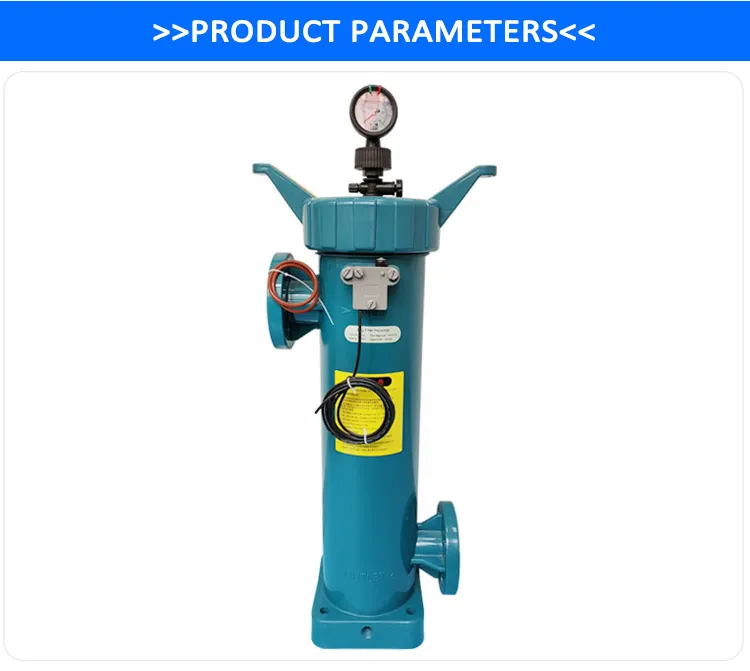

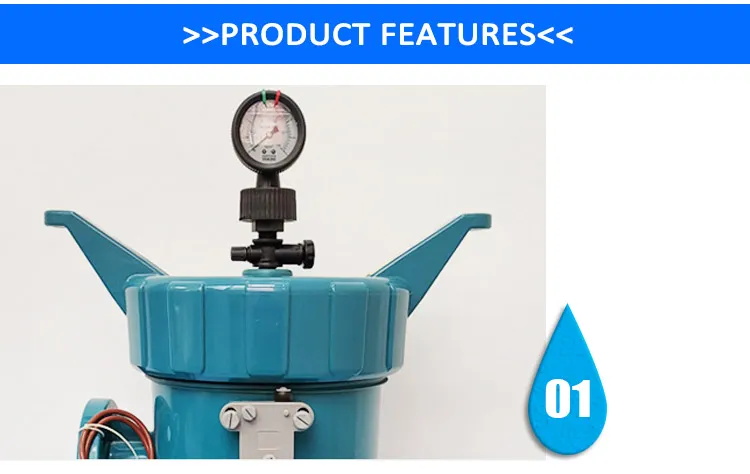

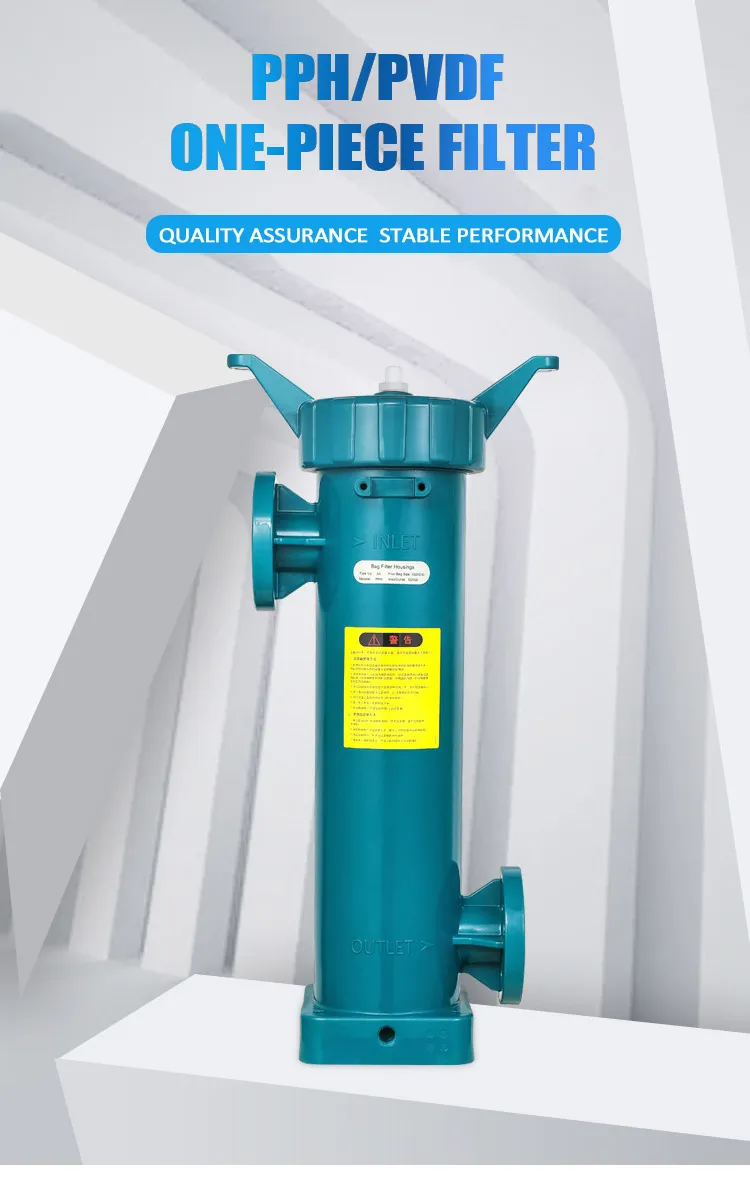

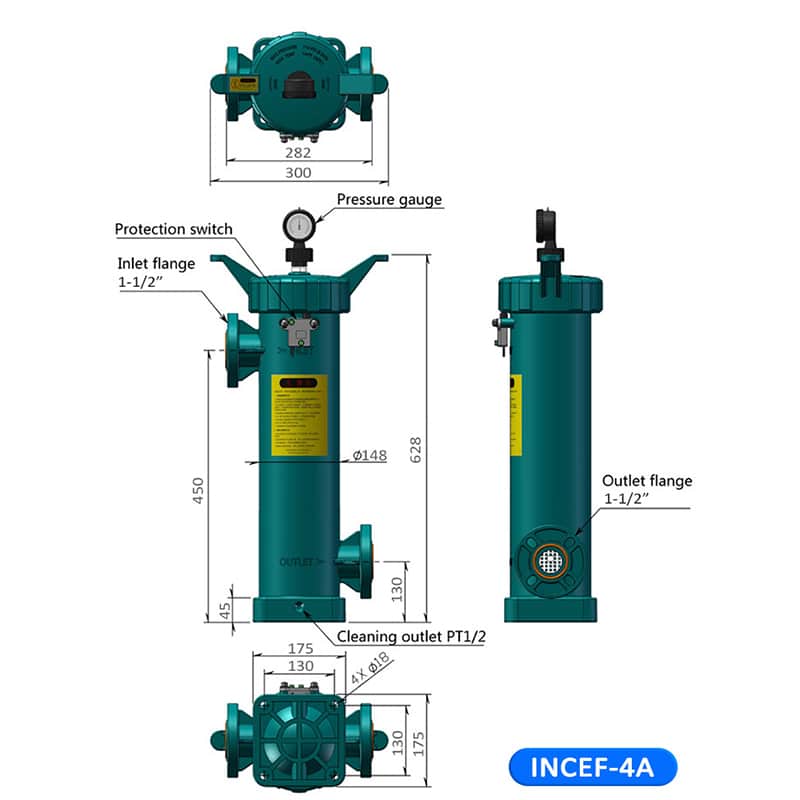

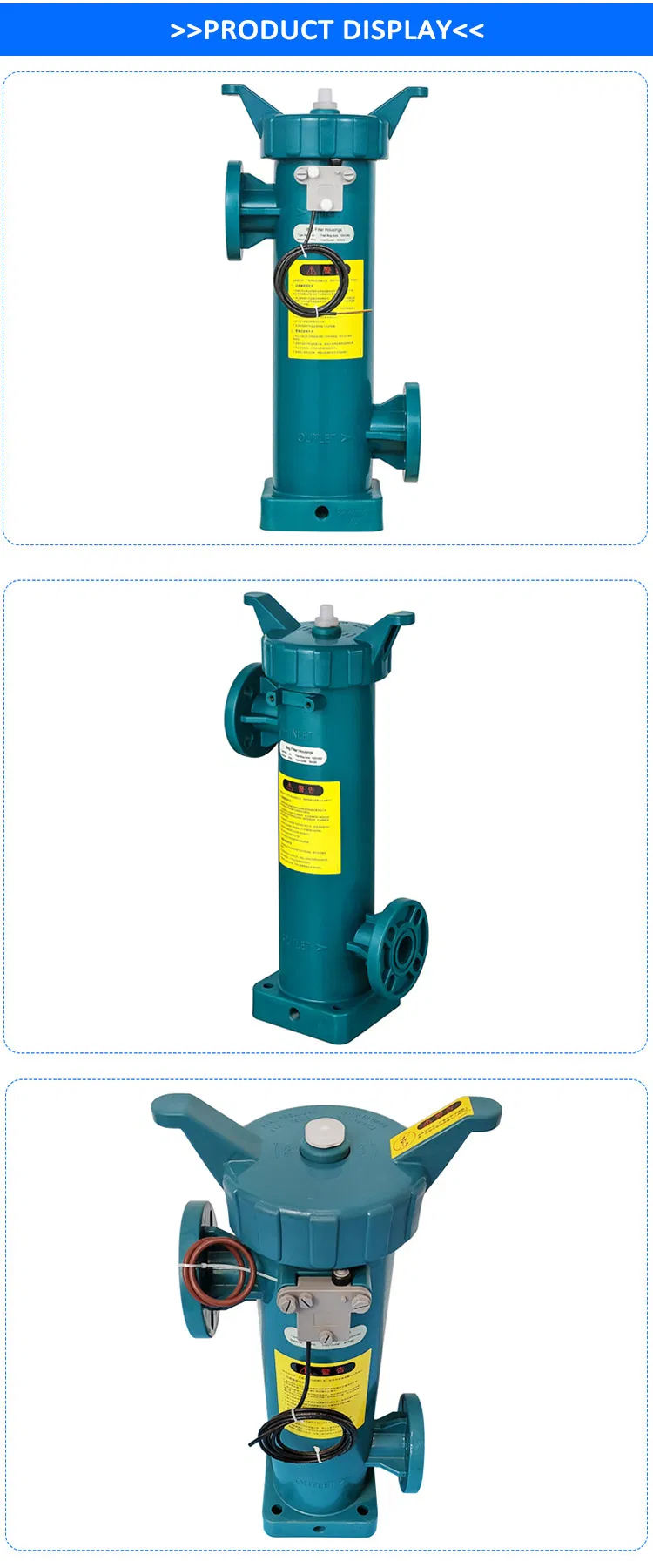

INCEF-4A Polypropylene Homopolymer Filter Housing

1. This filter is a bag filter, equipped with a standard 4# filter bag (φ105*380MM), and can also be modified into a 10″*1 cotton core filter.

2. This filter is designed and manufactured in accordance with international standards and can match filter bags of internationally renowned brands (such as EATON, FSI, etc.), as well as domestic standard filter bags.

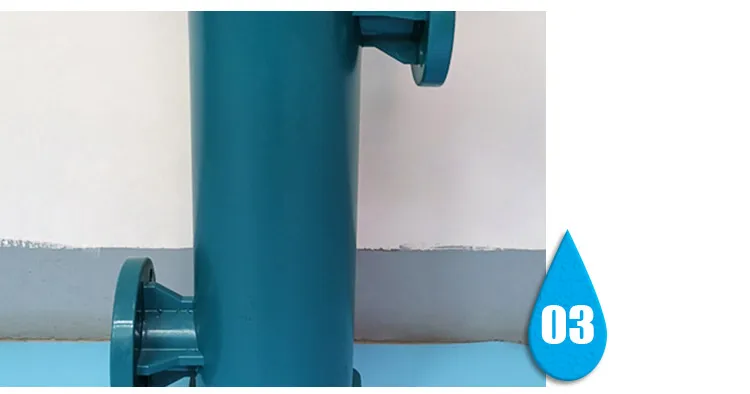

3. The barrel adopts a one-piece design, with a solid and reliable structure without any welding points, completely solving the problem of leakage. The polished barrel wall design not only prevents the chemical liquid from crystallizing on the barrel wall but also facilitates manual cleaning

4. It is light in weight and is made of imported PPH raw materials. It has good corrosion resistance against most chemicals. PVDF and ETFE materials have been developed.

5. Contains UV-resistant materials, making it durable and suitable for use in all climates.

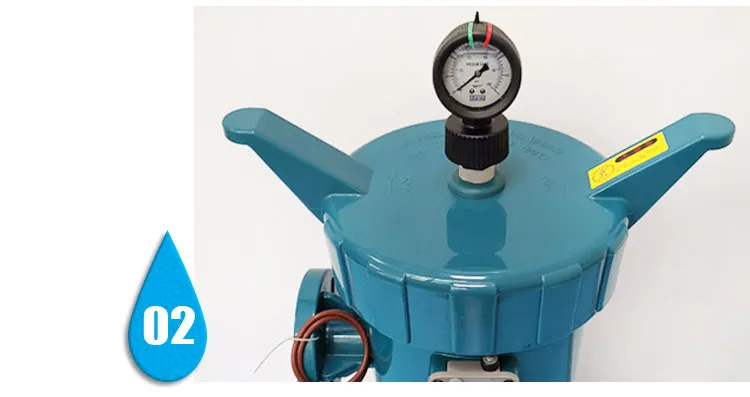

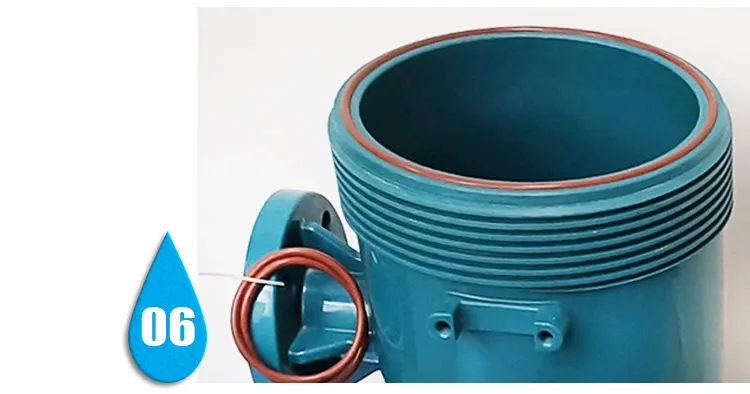

6. The design of the screw-in upper cover allows the filter cartridge to be opened and closed without any tools, making it easy and quick to replace the filter bag.

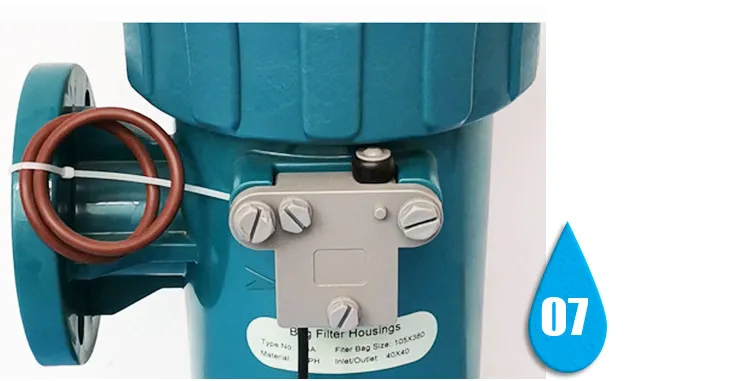

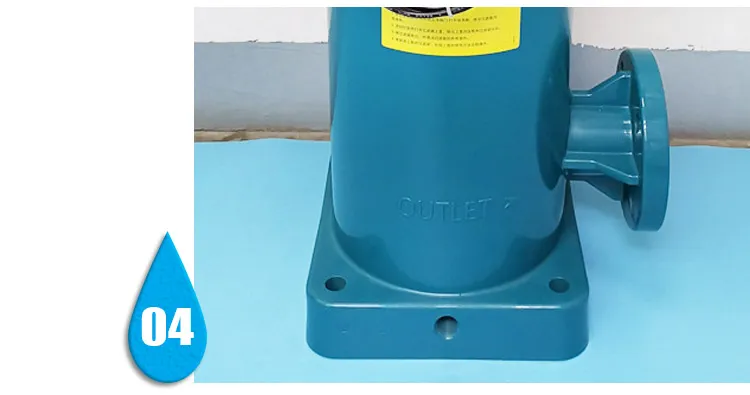

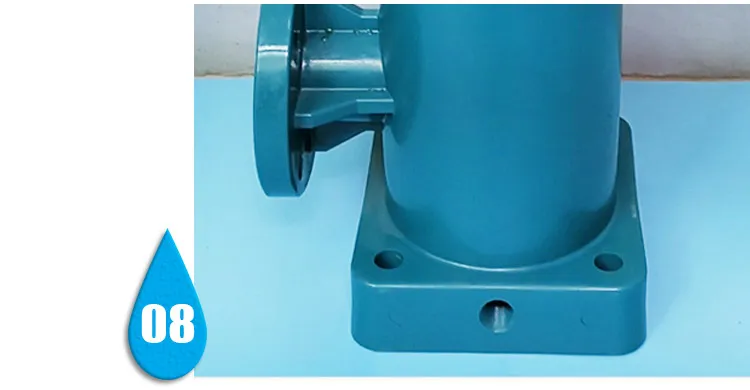

7. The barrel body is designed with a fixed base that can be installed with a sensor. After the sensor is installed, it can automatically detect whether the upper cover is locked. Prevent the pump from being started without the top cover locked.

8. Increase the space design of the net basket the inner wall of the barrel and the bottom of the barrel to make the liquid filtration flow channel more unobstructed, thereby reducing pump energy consumption.

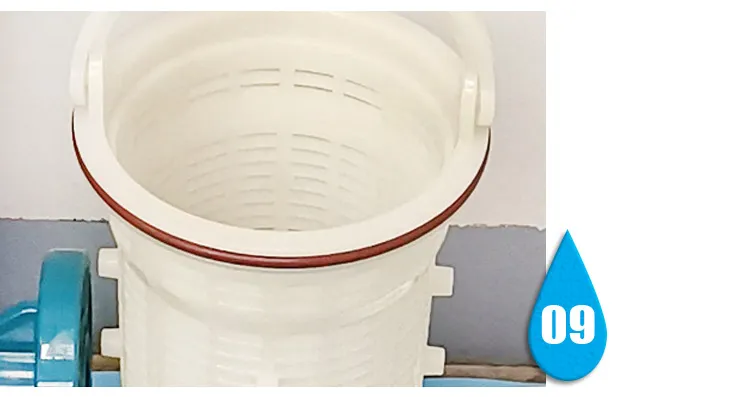

9. There is a sealing design between the filter bag ring and the inner wall of the net basket, and there is also a sealing design between the outer wall of the upper mouth of the basket and the inner wall of the barrel to prevent leakage inside the barrel and meet precision filtration requirements.

10. Suitable for use within the pressure range of 116PSI (8BAR) and the temperature of 176°F (80°C). Can be applied to a wide range of filtration precision from 0.1 to 800 microns.

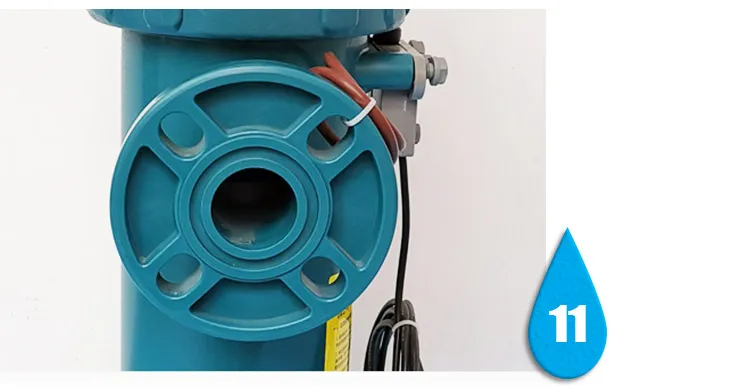

11. The water inlet and outlet are flanged, which is sturdy and durable and can be used with standard pipe flanges of various countries.

12. This filter can be widely used in urban sewage treatment, copper powder recovery, gold recovery, chemical petroleum, bioengineering, pharmaceuticals, electronics, electroplating, industrial wastewater, seawater desalination, printing and dyeing, papermaking, and other industries.

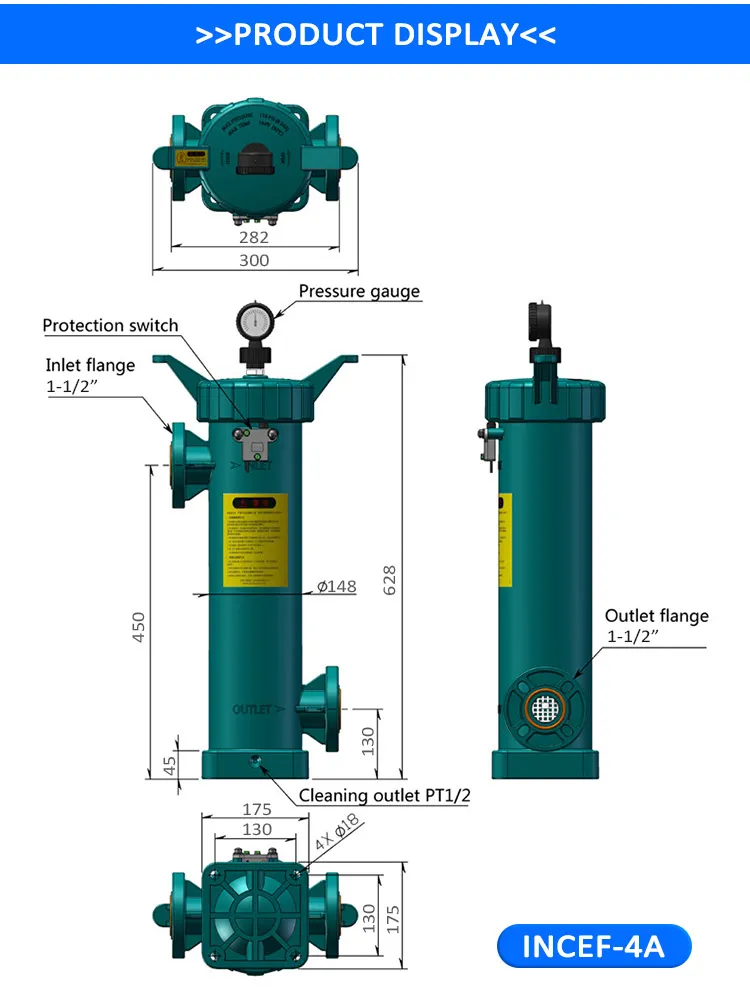

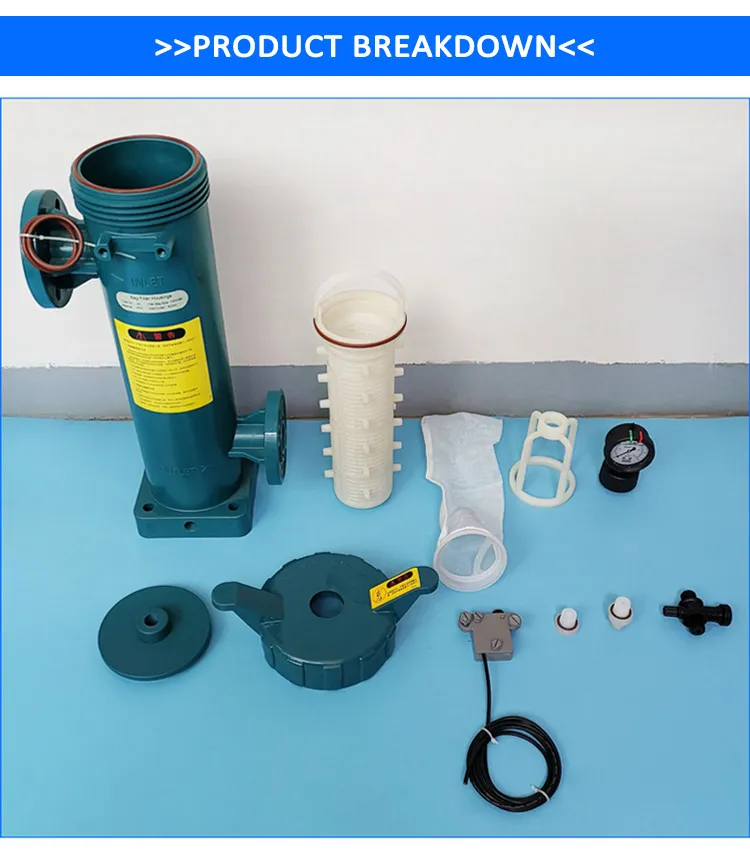

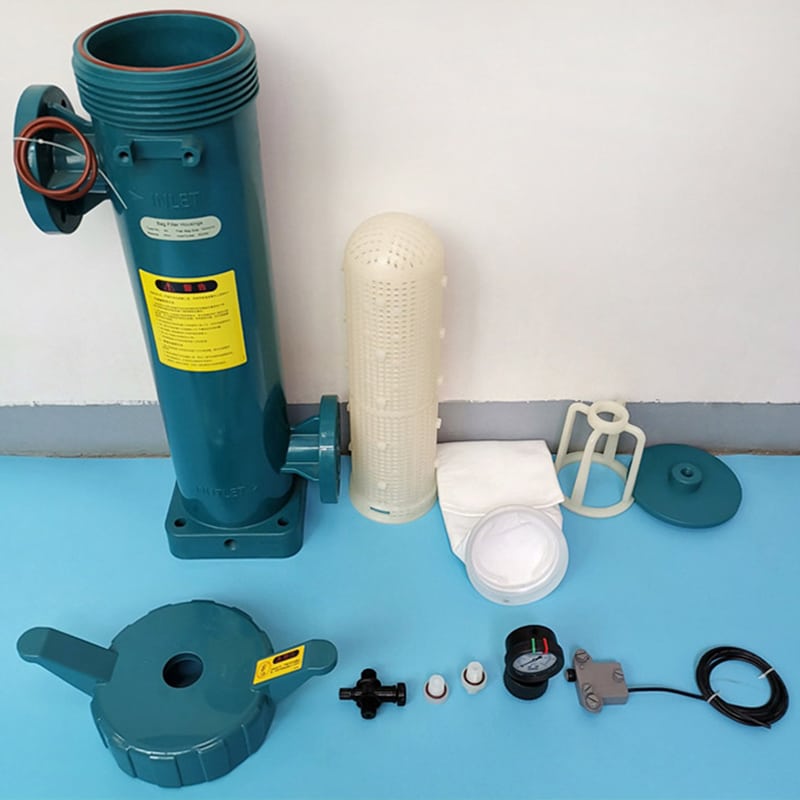

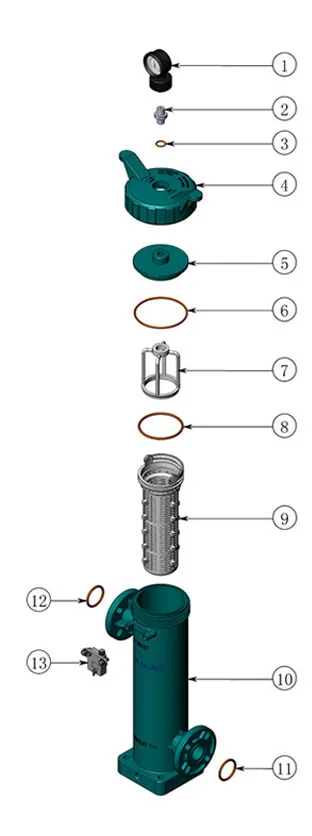

Components		Main Material
1	Pressure gauge	Please confirm the specifications when placing an order!
2	Pressure gauge joint	PP
3	O ring	FKM
4	upper cover	PPH
5	Inside the cover	PPH
6	Bucket O ring	FKM
7	Pressure ring	PPH
8	Basket O ring	FKM
9	Basket	PPH
10	Filter body	PPH
11	Filter outlet O ring	FKM
12	Filter inlet O ring	FKM
13	Protection switch	Please confirm your requirements when placing an order!

1. Before use, be sure to clean all sealing rings and sealing ring fixing grooves of the filter, and then place the sealing ring naturally in the sealing ring fixing groove.
2. Place the filter bag into the mesh basket inside the filter, so that the ring of the filter is close to the filter barrel (for barrel wall-sealed filters) or the inner wall of the basket (for basket wall-sealed filters).
3. Place the filter bag pressure ring vertically above the filter bag ring and press the filter bag ring.
4. Place the inner pressure plate of the upper cover on the upper opening of the filter and press the sealing ring flatly.
5. Tighten the filter upper cover to the barrel clockwise.
6. Install the pressure gauge connector and install the pressure gauge.
7. Close the drain valve, open the liquid inlet and outlet valve, and start the pump.
1. Stop the pump operation, close the inlet and outlet valves, open the drain valve, and drain the liquid inside the filter.
2. Rotate counterclockwise to open the upper cover of the filter, and take out the inner pressure plate and filter bag pressure ring of the upper cover.
3. Take out the filter bag and clean all parts of the filter.
4. Reinstall the new filter bag and follow the above usage procedures.
