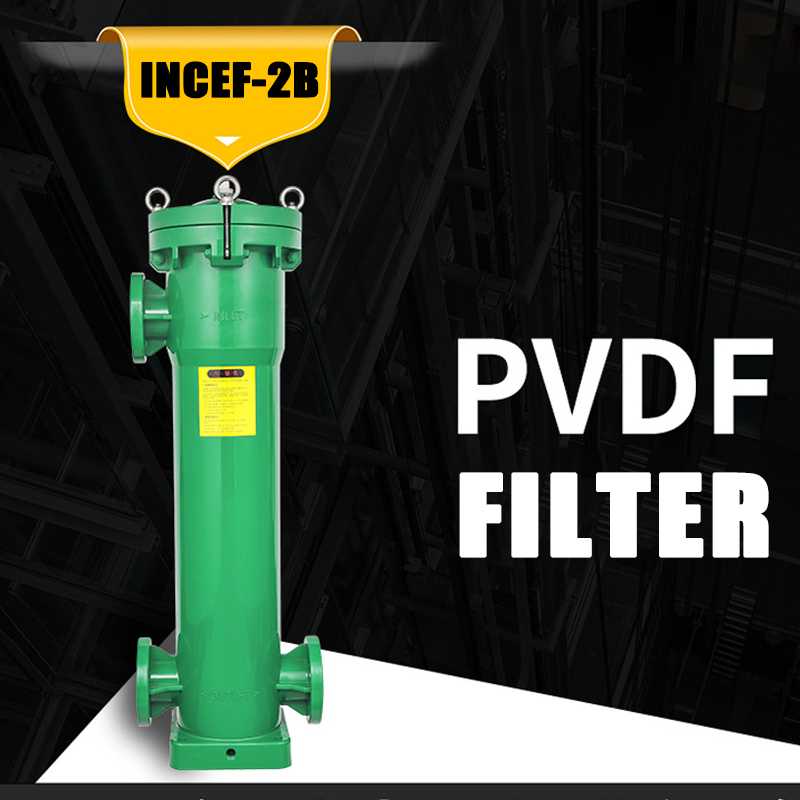

INCEF-2B-PVDF Polypropylene Homopolymer Filter Housing

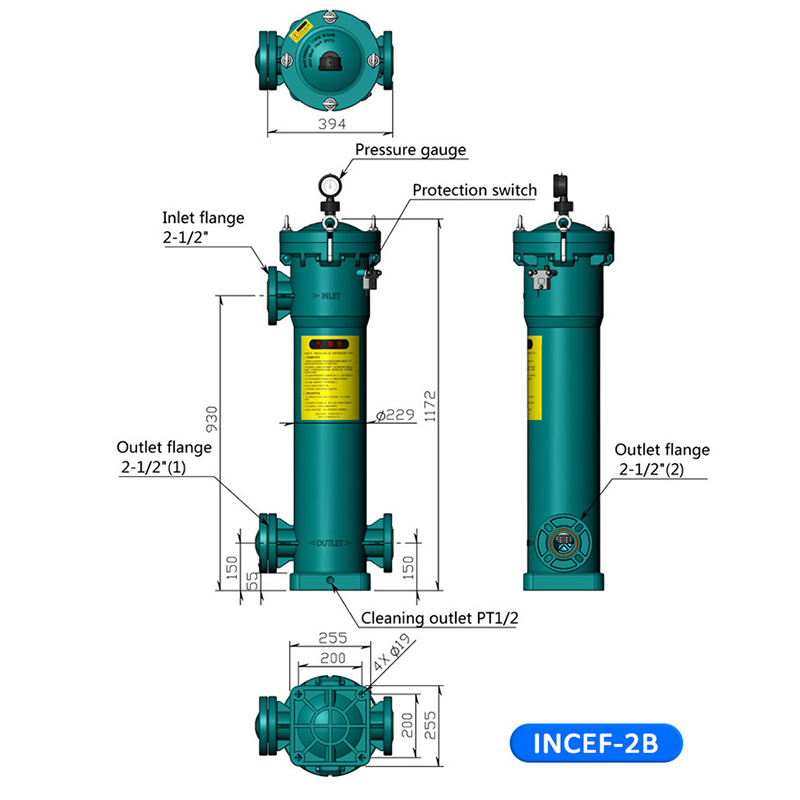

Specifications: INCEF-2B-PVDF Filter Housing
Our Ratings:
★ ★ ★ ★ ★

INCEF-2B-PVDF (Polyvinylidene Fluoride) filter housing is a type of high-performance plastic filter housing known for its exceptional resistance to a wide range of strong acids, alkalis, and organic solvents, as well as high temperatures and UV radiation. They are widely used in demanding industrial applications where purity and chemical compatibility are paramount

Request a Quote?

Product Description

High Precision PVDF Filter HousingHigh Precision PVDF Filter HousingHigh Precision PVDF Filter Housing

1.Model: INCE: Company       F: One-piece filter housing
2.Filter bag size: 1: φ7″x17″L(φ180x430mm),    2: φ7″x32″L(φ180x810mm),
4: φ4″x15″L(φ105x380mm),    5: φ6″x20″L(φ150x510mm),
6: φ7″x22″L(φ180x560mm)
3.Upper cover style: A: Screw top cover,   B: Lifting ring gland,
AX: Screw top cover, the water inlet and outlet are union type.
4.Main material: P:PPH,  V:PVDF
5.Upper cover joint: D: Internal tooth PT1/2 (with plug, without pressure gauge),
R: External tooth PT1/2 connector (with pressure gauge),
E: Exhaust valve (with pressure gauge)
6.Protection switch: None: Without protection switch, K: Install protection switch (micro switch type)
7.Special code: S: Standard metal accessories are SUS31,   T:Configuration with metal accessories is Ti

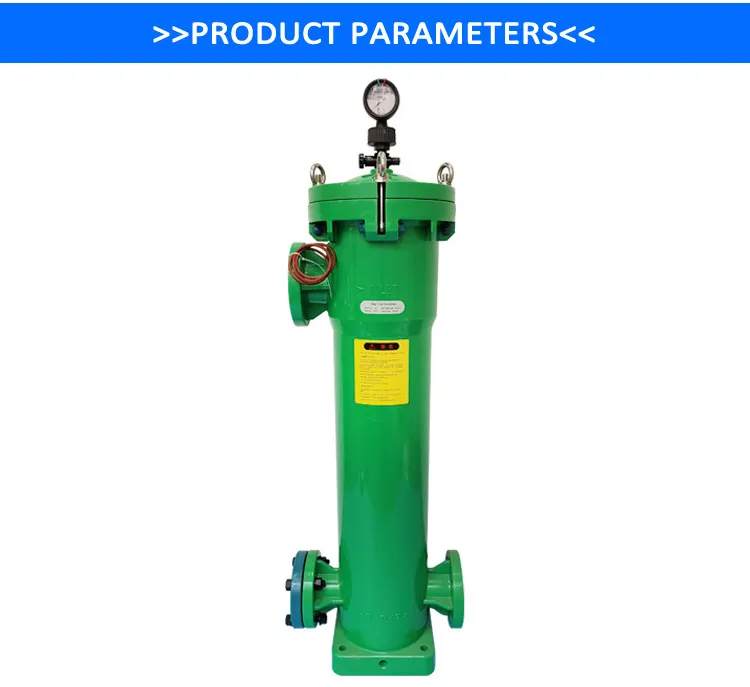

High Precision PVDF Filter Housing

Model In-outlet
(mm)		 Filter Bag
(mm)		 Filter Area
(m2)		 Housings
capacity/weight
(l/ kg)		 Maximum Traffic
(m3/h)		 Operating
Temperature(ºC)		 Max Pressure
(Mpa)
INCEF-1A-P 5Ox50 180×430 0.25 20.3 /15.3 20 90 0.8
INCEF-2A-P 65×65 180×810 0.5 32/24.2 40 90 0.8
INCEF-2B-V 65×65 180×810 0.5 32/24.2 40 90 0.8
INCEF-4A-P 40×40 105×380 0.12 6.5/5.9 12 90 0.8
INCEF-4AX-P 40×40 105×380 0.12 6.5 /41 12 70 0.6
INCEF-5A-P 50×50 150×510 0.3 2.8/10.8 22 90 0.8
INCEF-6A-P 65×65 180×560 0.35 24 / 18 25 90 0.8

High Precision PVDF Filter Housing

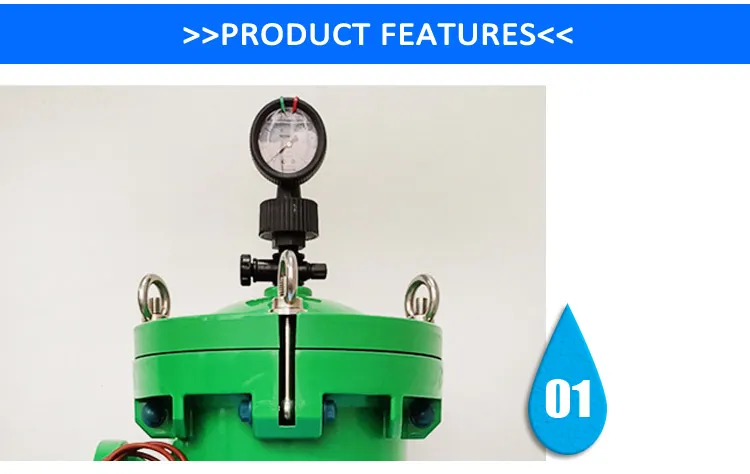

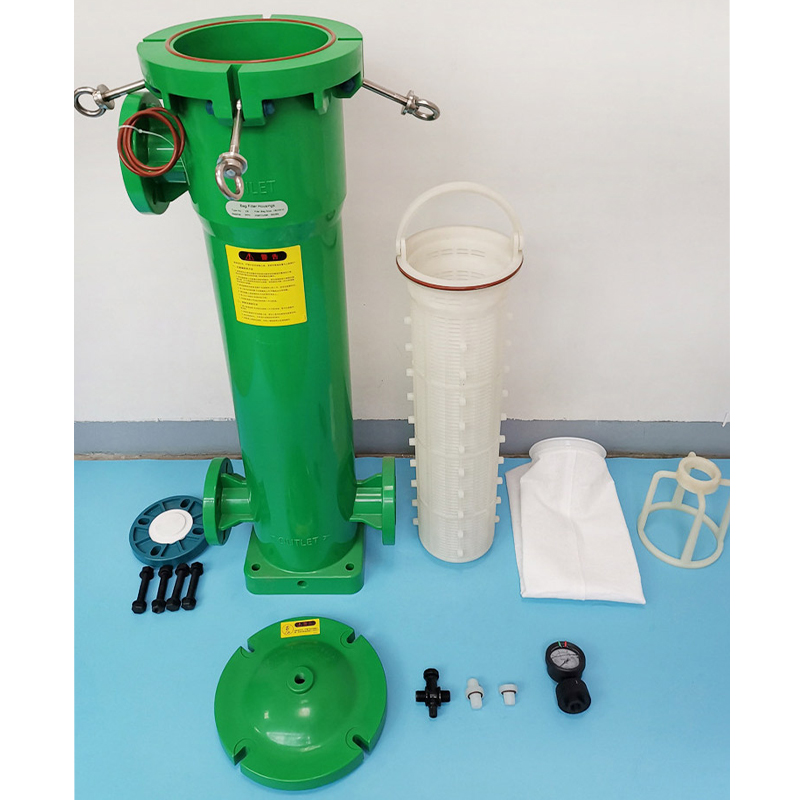

  1. This filter is a bag filter,equipped with a standard 2# filter bag (φ180*810MM), and can also be modified into a 30″*5 cotton core filter.
High Precision PVDF Filter Housing

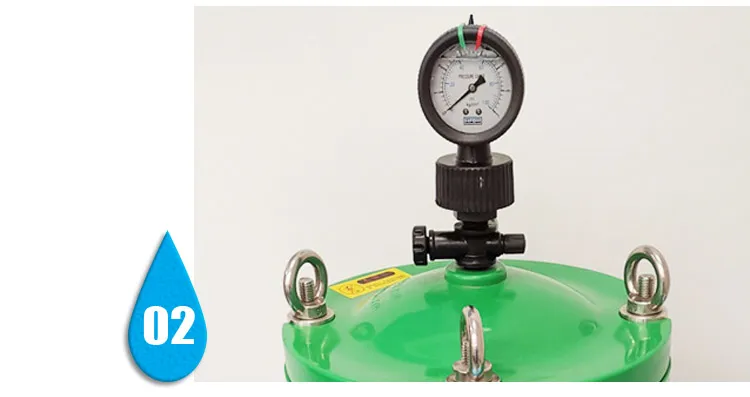

2.This filter is designed and manufactured in accordance with international standards and can match filter bags of internationally renowned brands (such as EATON, FSI,  etc.), as well as domestic standard filter bags.
High Precision PVDF Filter Housing

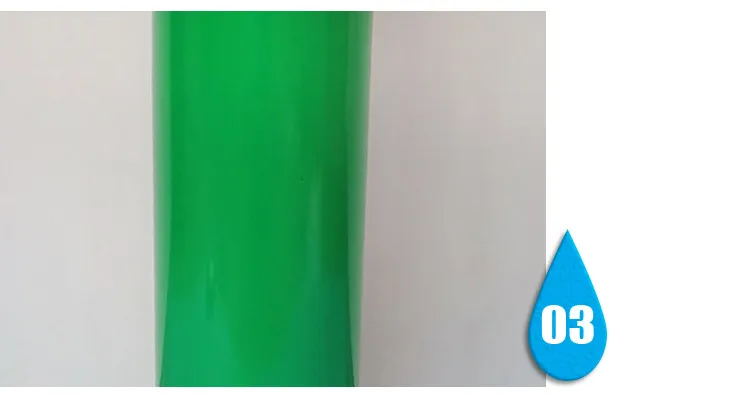

3.The barrel adopts a one-piece design, with a solid and reliable structure without any welding points, completely solving the problem of leakage.
High Precision PVDF Filter Housing

4.It is light in weight and is made of imported PVDF raw materials. It has good corrosion resistance against most chemicals. PVDF and ETFE materials have been developed.
High Precision PVDF Filter Housing
5.Contains UV-resistant materials, making it durable and suitable for use in all climates.
High Precision PVDF Filter Housing
6.The polished barrel wall design can prevent the liquid medicine from crystallizing on the barrel wall and facilitate manual cleaning.
High Precision PVDF Filter Housing
7.Increase the space design of the net basket and the inner wall of the barrel and the bottom of the barrel to make the liquid filtration flow channel more unobstructed, thereby reducing pump energy consumption.
High Precision PVDF Filter Housing

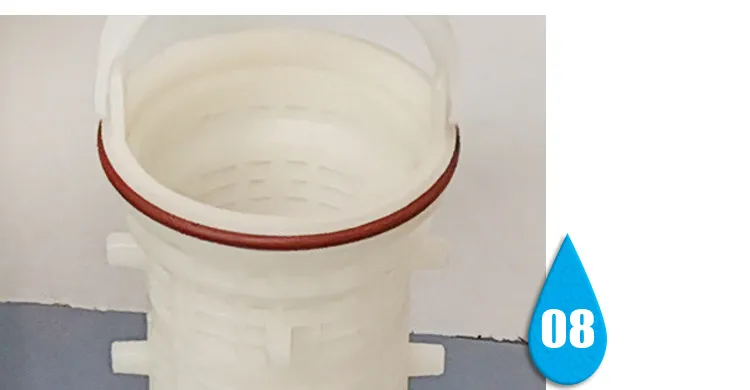

8.There is a sealing design between the filter bag ring and the inner wall of the net basket, and there is also a sealing design between the outer wall of the upper mouth of the basket and the inner wall of the barrel to prevent leakage inside the barrel and meet precision filtration requirements.
High Precision PVDF Filter Housing

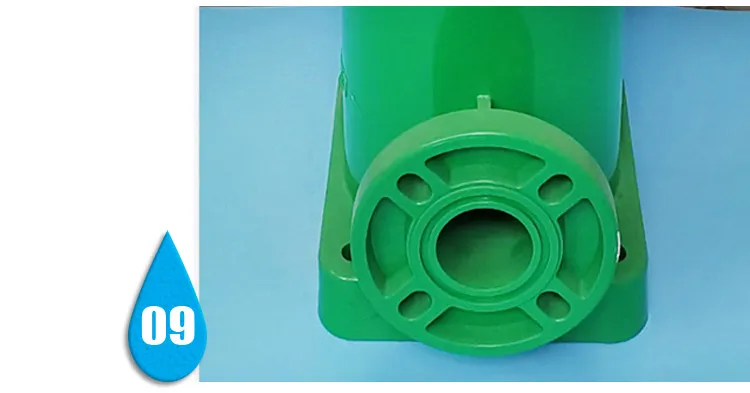

9.Suitable for use within the pressure range of 116PSI (8BAR) and the temperature of 176°F (80°C). Can be applied to a wide range of filtration precision from 0.1 to 800 microns.
High Precision PVDF Filter Housing

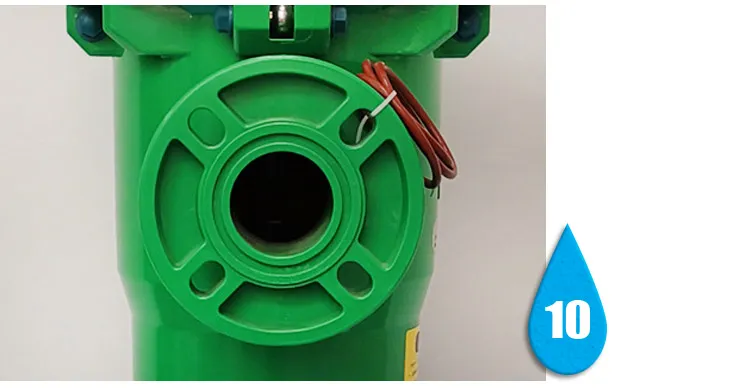

10.The water inlet and outlet are connected by a loose joint, which is sturdy and durable and can be used with different pipe diameters and pipe materials.
High Precision PVDF Filter Housing

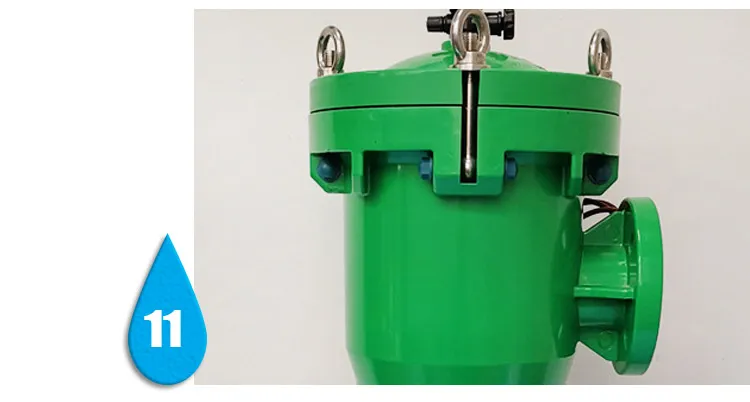

11.This filter can be widely used in urban sewage treatment, copper powder recovery, gold recovery, chemical petroleum, bioengineering, pharmaceuticals, electronics, electroplating, industrial wastewater, seawater desalination, printing and dyeing, papermaking and other industries.
High Precision PVDF Filter Housing

High Precision PVDF Filter Housing

High Precision PVDF Filter Housing

High Precision PVDF Filter Housing
High Precision PVDF Filter Housing

High Precision PVDF Filter Housing

1. Before use, be sure to clean all sealing rings and sealing ring fixing grooves of the filter, and then place the sealing ring naturally in the sealing ring fixing groove.
2. Place the filter bag into the mesh basket inside the filter, so that the ring of the filter is close to the filter barrel (for barrel wall-sealed filters) or the inner wall of the basket (for basket wall-sealed filters).
3. Place the filter bag pressure ring vertically above the filter bag ring and press the filter bag ring.
4. Place the inner pressure plate of the upper cover on the upper opening of the filter and press the sealing ring flatly.
5. Tighten the filter upper cover to the barrel clockwise.
6. Install the pressure gauge connector and install the pressure gauge.
7. Close the drain valve, open the liquid inlet and outlet valve, and start the pump.
High Precision PVDF Filter Housing
1. Stop the pump operation, close the inlet and outlet valves, open the drain valve, and drain the liquid inside the filter.
2. Rotate counterclockwise to open the upper cover of the filter, and take out the inner pressure plate and filter bag pressure ring of the upper cover.
3. Take out the filter bag and clean all parts of the filter.
4. Reinstall the new filter bag and follow the above usage procedures.

It is strictly prohibited to open the upper cover of the filter
while the equipment is running, otherwise it may cause serious casualties.
High Precision PVDF Filter Housing

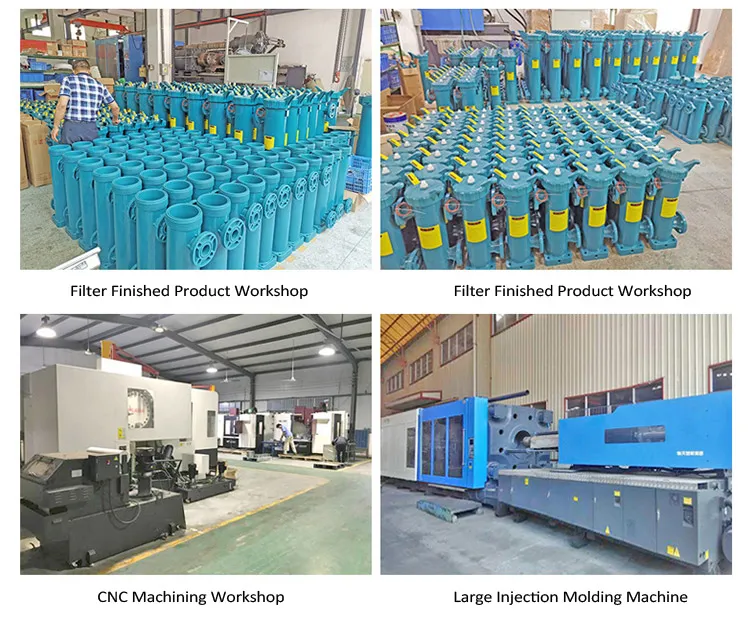

Hebei Ince Environmental Technology Co., Ltd is a professional factory dedicated to R&D, design, production and sales in the field of environmental protection.

The company’s leading products include: Liquid Filter Bags, High Flow Filter Cartridges, Pleated  Filters Cartridge, Membrane Filter Cartridges, Melt Blown Filter Cartridges, String Wound Cartridges,Filter Housing, Activated Carbon Filters Cartridge,corrosion-resistant filters, PP filters, PPH filters, PVDF filters, ETFE filters, PTFE filters, bag filters, cartridge filters, integrated filters, plastic filters, PP bag filter, stainless steel filter, membrane residue dehydrator,
corrosion-resistant magnetic pump, corrosion-resistant vertical pump and chemical liquid filter, etc.

Products are widely used in environmental protection, optoelectronics, electronics, electroplating, automobiles, dyeing and printing, papermaking, reclaimed water reuse, industrial wastewater, desalination, fine chemicals, petrochemicals, biochemical pharmaceuticals, bioengineering, biopharmaceuticals, food and other industries .
