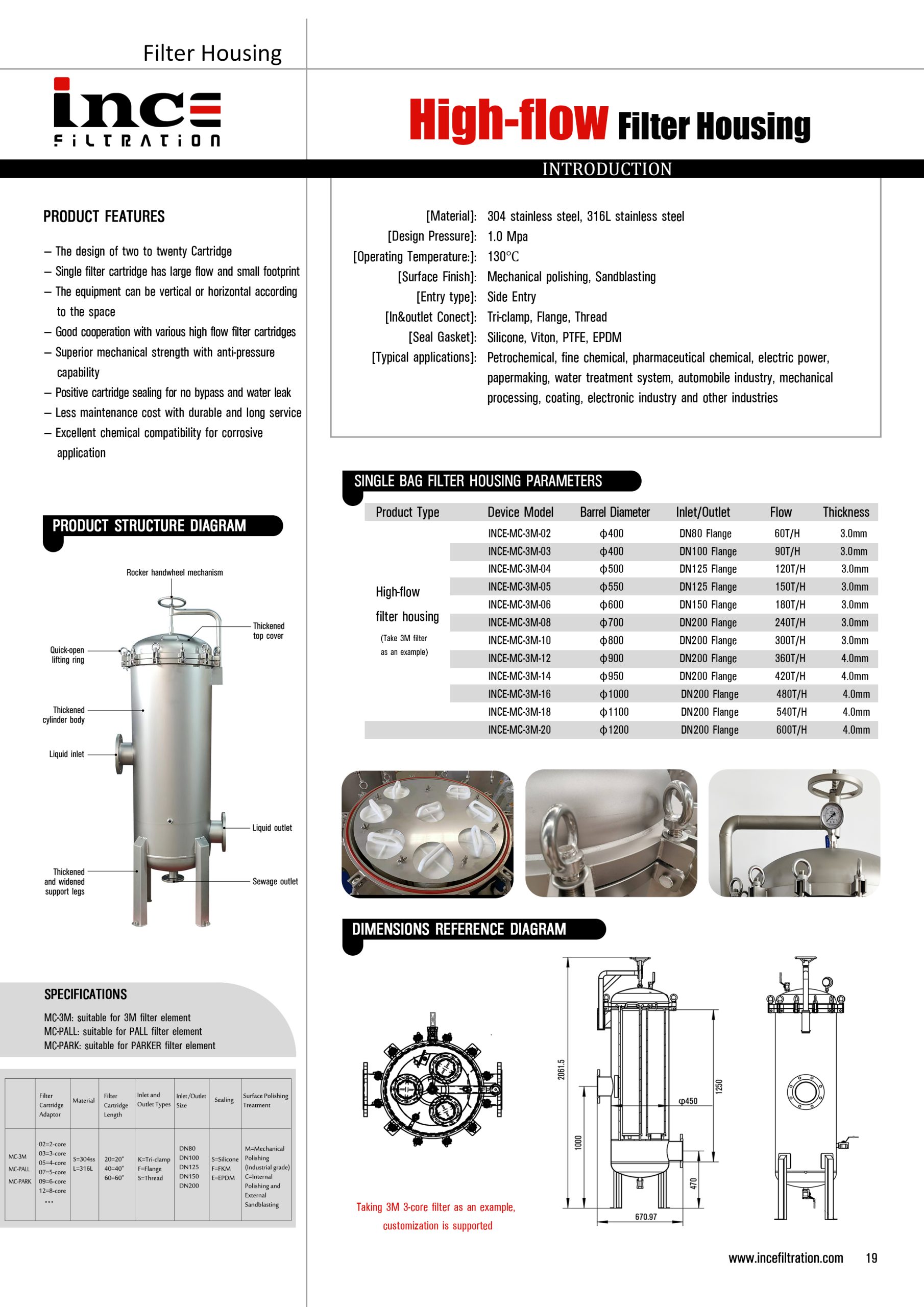

High Flow Cartridge Filter Housing for Industrial Filtration Systems

In industrial filtration environments, stable flow management and reliable contaminant control are essential for protecting downstream equipment and maintaining process efficiency. As systems scale up and flow demands increase, traditional housings may struggle with pressure stability, maintenance frequency, and filter replacement efficiency. The High Flow Cartridge Filter Housing is developed to address these challenges by supporting high flow operation while simplifying system integration and long-term operation.

Product Overview and Structural Concept

A High Flow Cartridge Filter Housing is a pressure-rated filter housing designed to accommodate large-diameter cartridge elements for industrial filtration applications. Unlike conventional housings that rely on multiple small cartridges, this cartridge filter housing is engineered to handle significantly higher flow rates with fewer elements, reducing system complexity while maintaining effective filtration performance.

The internal flow path of a high flow cartridge filter housing is optimized to minimize turbulence and pressure loss. Fluid typically flows from the inside to the outside of the cartridge, allowing contaminants to be evenly distributed across the filtration media. This design supports stable flow behavior and reduces localized loading, which is critical in high flow industrial filtration systems.

Structural strength is a defining feature of this filter housing. Manufactured to withstand demanding operating pressures, the housing provides reliable sealing and mechanical stability during continuous operation. Its robust construction ensures consistent performance in applications where flow rate stability and system reliability are essential.

High Flow Performance and Filtration Stability

High flow capability is the core advantage of a High Flow Cartridge Filter Housing. By supporting large-volume fluid processing within a compact footprint, the housing allows industrial systems to achieve required throughput without excessive pressure drop. This high flow design improves overall system efficiency and supports stable operating conditions.

Compared with standard cartridge filter housing designs, high flow housings reduce the number of cartridges required for a given system capacity. Fewer cartridges result in simplified flow distribution and more predictable filtration behavior. This consolidation helps industrial filtration systems maintain consistent performance even under variable operating loads.

Stable filtration performance is also supported by uniform cartridge positioning and secure sealing within the filter housing. Proper alignment ensures that all process fluid passes through the cartridge media rather than bypassing the filtration path. This consistency is essential for maintaining reliable contaminant removal in critical industrial filtration applications.

Filter Replacement and Maintenance Efficiency

Efficient filter replacement is a major operational consideration in high-capacity filtration systems. A High Flow Cartridge Filter Housing is designed to simplify cartridge removal and installation, reducing maintenance time and minimizing system downtime. With fewer cartridges to handle, maintenance procedures become more straightforward and predictable.

The housing design allows operators to access cartridges easily, supporting faster filter replacement during scheduled maintenance intervals. This efficiency is particularly valuable in industrial filtration environments where shutdowns directly impact production output and operating costs.

By extending service intervals and simplifying filter replacement, the cartridge filter housing contributes to improved maintenance planning. Reduced labor requirements and shorter downtime help facilities maintain consistent operation while controlling long-term maintenance expenses.

Application Scope in Industrial Filtration

High Flow Cartridge Filter Housing systems are widely used across industrial filtration sectors where large volumes of liquid must be processed reliably. In water treatment and utility systems, the housing supports continuous high flow operation while removing suspended solids that could affect downstream processes.

In manufacturing and process industries, industrial filtration systems rely on stable flow and consistent filtration to protect equipment such as pumps, heat exchangers, and process lines. The high flow cartridge filter housing provides dependable performance in these environments, supporting both pre-filtration and final filtration stages.

Chemical processing and energy-related applications also benefit from the durability and flow capacity of this filter housing design. Its ability to handle demanding operating conditions makes it suitable for a wide range of industrial filtration systems requiring both performance stability and structural reliability.

Operational Value and System Reliability

From an operational perspective, a High Flow Cartridge Filter Housing offers measurable value by improving system efficiency and reducing lifecycle costs. High flow capability allows facilities to achieve target throughput with fewer housings, simplifying system layout and reducing installation complexity.

Reliable housing construction supports long-term system stability. By maintaining secure sealing and consistent flow paths, the filter housing helps prevent pressure fluctuations and filtration inconsistency. This reliability protects downstream equipment and supports overall process control.

For industrial operations focused on efficiency, reliability, and manageable maintenance, the High Flow Cartridge Filter Housing provides a balanced solution. Its combination of high flow performance, efficient filter replacement, and robust construction makes it a practical choice for modern industrial filtration systems where consistent operation and long-term value are critical.
